Application

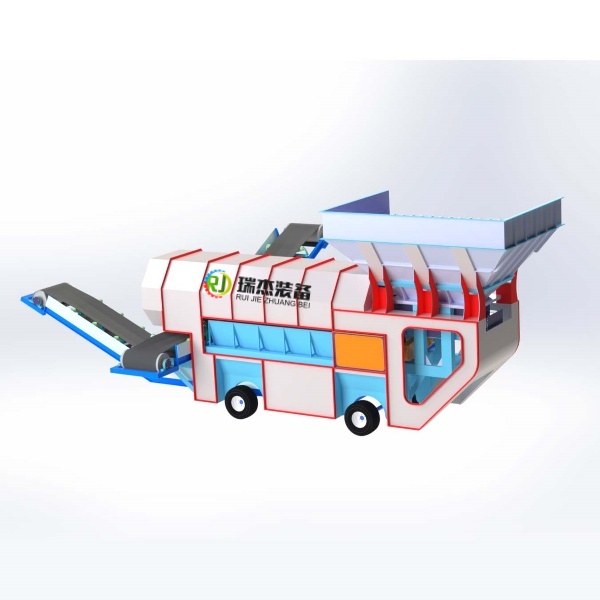

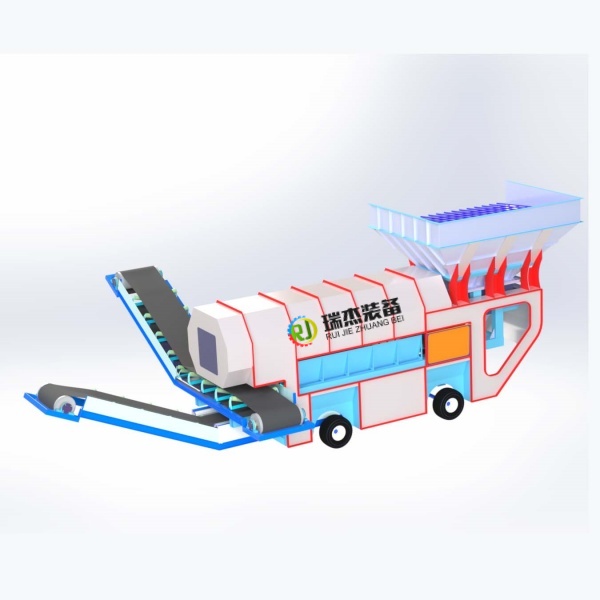

Ruijie flexible mobile trommel screen WS1230 with high efficiency, is widely used for grading materials of different particle sizes and screening out impurities, in mining and stone processing, sand and gravel production line, coal washing industry.
Principle
The material enters the hopper and falls evenly and accurately onto the conveyor belt, which then stably and continuously feeds the material into the interior of the drum screen.
Driven by a motor, the drum rotates at a constant speed, and the material forms a parabolic trajectory as it moves with the rotation of the drum.
Material smaller than the screen hole size are discharged into the trough at the bottom and conveyed to the next section via an independent conveyor belt.
Oversized materials are discharged from the end along the axis of the drum. Through this sequential process, the entire screening operation is successfully completed.
Feature
Equipped with tires for flexible mobility, adapting to complex terrains such as mines and construction sites.
No need for disassembly, enabling immediate deployment for use.
Scientifically designed to effectively prevent material accumulation and blockages.
Efficient and continuous conveying, improving operational efficiency.
Structure
Technical Parameter
Model |
Power (kw)
| Cylinder Rotation Speed(r/mim) | Maximum Feed Particle Size(mm) | Processing Capacity (t/h) | Dimensions (L*W*H) (mm) | Weight (kg) |
|
MWS1230 | 7.5 | 22 | Mesh Size*25 | 15~35 | 7950x2550x2600 | 3972 |

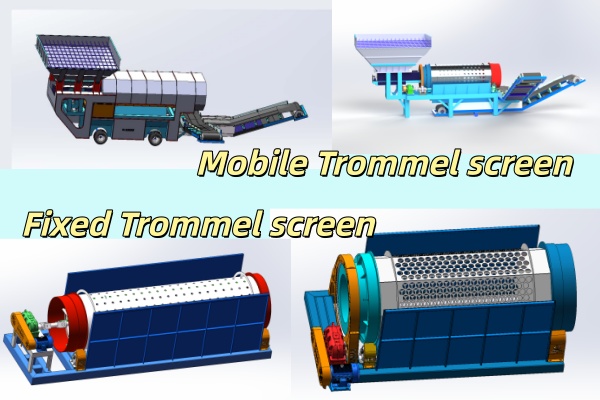

Mobile vs Fixed Trommel Screen
Compared with fixed trommel screens, mobile trommel screens have more obvious advantages in practical application, which are mainly reflected in the following aspects:
Higher flexibility: It can be flexibly moved to any required working site without fixed installation, avoiding the trouble of disassembly and assembly when the construction site changes.
Faster deployment: No need to build a fixed foundation, it can be put into use quickly after arriving at the site, saving the time of civil engineering and installation.
Strong adaptability: It can be adjusted according to the on-site environment, whether it is dry or wet operation, and can adapt to different processing needs.
Lower early investment: No need to carry out foundation construction and fixed installation, which greatly reduces the early construction cost and cycle.
Easier operation and maintenance: It can be moved and maintained at any time, without being restricted by the fixed installation position, and the later maintenance is more convenient.
