Industrial Spiral-shaped Automatic Precise Spiral Sand Washing Machine

Application

The spiral sand washing machine is widely used for cleaning and classifying sand, slag, minerals, and recycled materials. It is suitable for incineration bottom ash (IBA) processing, slag treatment, construction waste recycling, aggregate production, sand production, and mineral processing plants, helping remove dust, clay, and impurities to improve the quality and recovery value of processed materials.

Working Principle

The Spiral Sand Washing Machine uses a rotating spiral structure and water flow to clean and classify materials.

After entering the washing tank, materials are continuously stirred and moved by the rotating spiral blade. The upward water flow separates light impurities, dust, and fine particles from the useful materials.

Clean materials are gradually transported upward by the spiral blade and discharged, while impurities and wastewater are removed through the overflow system.

The combined washing and conveying process improves cleaning efficiency and reduces the need for additional equipment.

Feature

Efficient Washing and Cleaning

The spiral blade continuously agitates materials to remove clay, dust, and impurities attached to sand and slag particles.

Combined Washing and Classification

Integrates material cleaning, grading, and preliminary dewatering functions in one machine.

Adjustable Washing Performance

The water flow and spiral speed can be adjusted according to different material conditions and cleaning requirements.

Wear-Resistant Spiral Structure

The reinforced spiral blade is designed for continuous operation with abrasive materials such as sand, slag, and minerals.

Improved Material Quality

Effectively improves the cleanliness and quality of recycled sand, aggregates, and mineral materials.

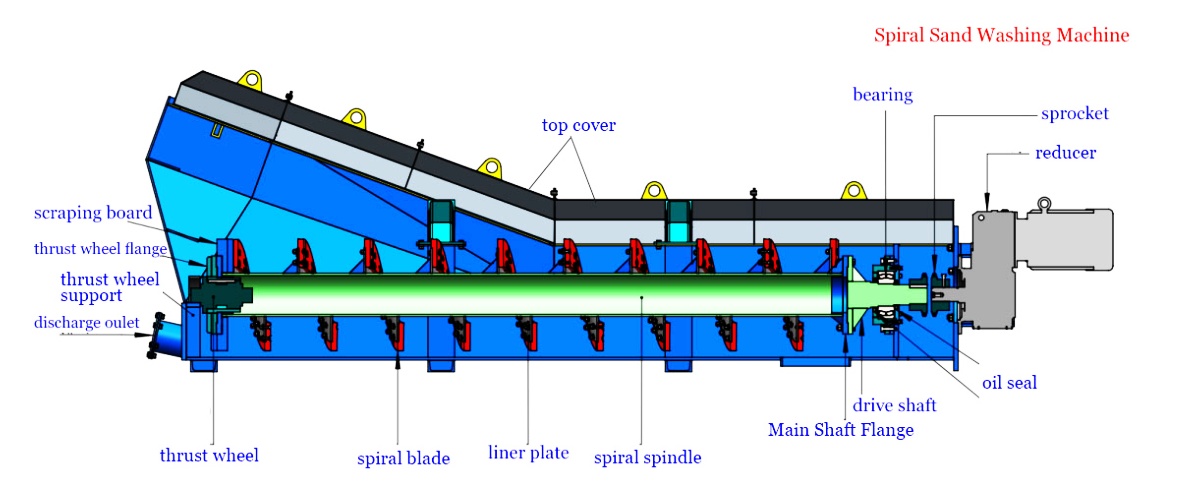

Structure

Technical Parameter
