Application

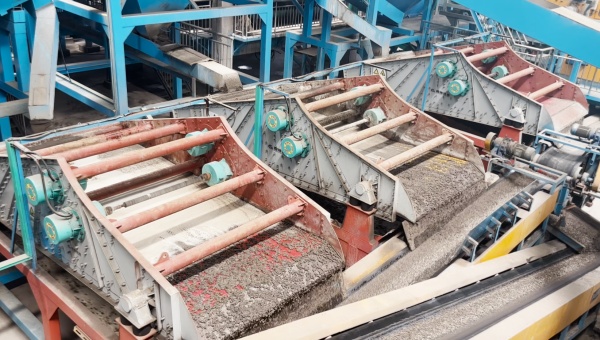

The dewatering screen allows adjustable excitation force based on material moisture levels.
With sturdy structure, simple operation, and low maintenance requirements, it delivers outstanding screening performance across a range of industrial sectors, such as:
Incineration bottom ash ( dehydration and desliming the treated tailling)
Construction waste recycling (mud removal and aggregate drying)
Quarry sand processing (dewatering of washed sand for quality improvement)
Industrial sludge treatment (solid-liquid separation for waste reduction)
Principle

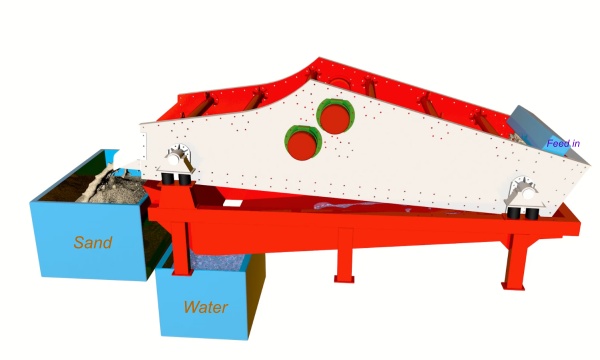

▶The Dewatering Screen uses four side-plate vibration motors to generate controlled linear vibration. The motors operate synchronously in opposite directions, and the centrifugal forces generated by the eccentric blocks combine to form a directional excitation force.
▶The resulting vibration moves the material forward along the screen deck while water and fine particles pass through the screen openings.
▶The excitation force can be adjusted according to the moisture content of the feed: higher excitation can be applied to drier materials, while lower excitation is suitable for wetter materials. Dewatered material is discharged from the end of the screen.
Feature
● Adjustable Excitation Force
The vibration intensity can be adjusted according to material moisture and processing conditions.
● Four-Motor Synchronous Drive
Four side-plate vibration motors work in synchronized reverse rotation to generate a stable directional excitation force.
● Replaceable Screen Panels
Screen panels can be replaced according to different screening requirements, extending the usable life of the equipment.
● Horizontal or Inclined Installation
The screen can be configured for horizontal or inclined installation according to the layout of the processing line.
●Compact Structural Design
The simplified structure reduces installation space and makes routine maintenance more convenient
Structure
The Dewatering Screen mainly consists of:
The four vibration motors and eight eccentric-block sets form the main excitation system, while the replaceable screen panels provide flexibility for different screening requirements.
Technical Parameter
Model | Screen Area(㎡) | Processing Capacity(t/h) | Feed Size (mm) | Weight (kg) | Dimensions (mm) |
TSS21025 | 2.5 | 10-30 | ≤10 | 2150 | 2600×1570×1575 |
TSS21524 | 3.6 | 20-40 | ≤10 | 2368 | 2750×2070×1853 |
TSS21842 | 7.86 | 50-70 | ≤10 | 5430 | 4860×2470×2567 |
TSS41842 | 7.86 | 60-80 | ≤10 | 6250 | 4900×2470×2785 |
TSS41860 | 10.2 | 100-120 | ≤10 | 7850 | 6100×2470×2910 |
TSS42460 | 13.26 | 140-160 | ≤10 | 8750 | 6100×3070×2910 |
Material & Process Compatibility
The vibrating dewatering The Dewatering Screen is used after wet washing or sorting processes to remove excess water from processed materials and prepare them for further handling, screening, or recovery.
