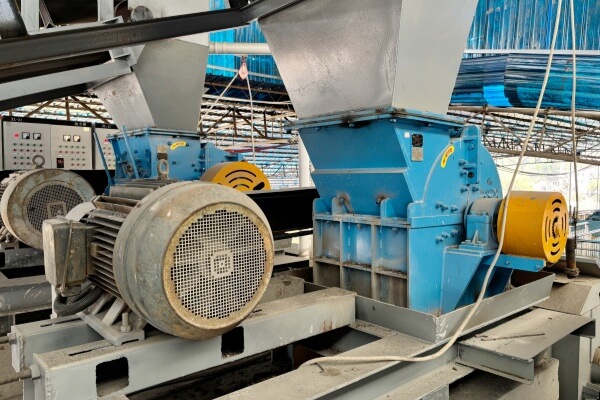

Eye-catching Robust Effective Energy-saving Stone Hammer Crusher

Application

RUIJIE Stone Hammer Crusher is widely applied in mining, building materials, slag processing and other industries. It can perform medium and fine crushing on materials of medium hardness or below, such as barite, limestone, terrazzo, silica sand, coal, coke, gypsum, aluminum sulfate, and slag.

Working Principle

1. The motor rotor drives the hammerheads on it to rotate at high speed.

2. Materials to be crushed are fed into the crushing chamber by the feeding equipment, and the high-speed rotating rotor first drives the hammerheads to strike the materials.

3. After gaining kinetic energy, the materials collide with the impact plate at high speed, undergoing secondary crushing.

4. During the collision, the materials gradually move toward the lining plate at the lower part of the crushing chamber.

5. When their particle size becomes smaller than the gap between the hammerheads and the lining plate, they exit the crushing chamber under their own gravity and pressure from other materials, completing a full crushing process.

Feature

● Simple & Compact Design: Rigorous component inspection ensures long-term stable operation.

● High Efficiency: Enables continuous, reliable performance for consistent production.

and stable operation.

● Durable Materials: Superior wear resistance extends service life and reduces maintenance.

Structure

RUIJIE’s hammer crusher features a robust structure with a high-speed rotor, replaceable hammerheads, and adjustable sieve plates for efficient, reliable crushing.

• Main shaft & pin shaft: Drive the high-speed rotor and secure the hammerheads for stable crushing.

• Hammerhead: The core component that impacts and crushes materials.

• Feed inlet & outlet: Manage smooth material input and discharge.

• Casing & lining plate: Protect the equipment body with wear-resistant lining.

• Sieve plate & sieve bar: Control finished product particle size and ensure uniform output.

Technical Parameter

Applicable to Various Scenarios

The stone hammer crusher enable apply to various scenarious. Ruijie supply customized crusher machines accodring to specific application.

Suitable for a Variety of Materials
