Application
The trommel screen is widely applied in iron ore processing, steel mills, and incinerator bottom ash(IBA) treatment industries. Built with high-quality steel, it supports both open and closed structural configurations to adapt to diverse materials and working environments.
The shaftless rolling iron cage features a shaftless design, enabling efficient screening and sorting of large-volume, high-impact iron materials with enhanced durability and performance.
Principle

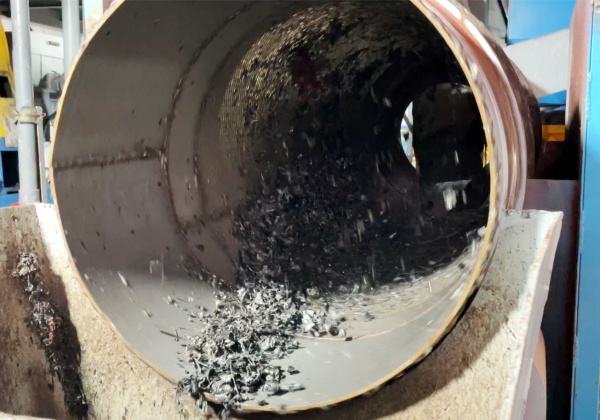

The material enters the screening drum through the feed port, where the rotating drum continuously tumbles and rolls it to achieve effective screening. Oversized particles are retained by the internal screen, while undersized material passes through and exits via the lower discharge port.
Feature
Anti-clogging screen design: The special screen structure prevents screen pore clogging for continuous, stable operation.
Low-noise & stable operation: Runs smoothly with minimal noise, suitable for various working environments.
Simple structure, easy maintenance: Robust yet straightforward design allows for quick and easy repairs.
Closed design for dust control: The fully enclosed structure simplifies sealing and dust collection, improving on-site conditions.
Reliable performance with low investment: High operational stability with low one-time investment cost.
High separation efficiency & long service life: Features a high separation rate and extended service life, thanks to its special screen material.
Structure
The WGTS series trommel screen features a compact, modular design for reliable screening performance. Its core components include:
Reducer & motor integrated drive: Powers the drum rotation.
Drive wheel transmission: Delivers smooth, low-noise operation.
Feed inlet / Discharge outlet: For material infeed and outfeed.
Screen drum: Classifies materials by particle size.
Bottom frame: Provides stable support for the whole machine.
Technical Parameter
Model | Power (kw) | Maximum Feed Particle Size(mm) | Processing Capacity (t/h) | Weight (kg) | Dimensions(mm) |
WGTS0818 | 1.5×2 | Mesh Size×2.5 | 5-20 | 1062 | 3044×1300×1100 |
WGTS0918 | 1.5×2 | Mesh Size×2.5 | 10-30 | 1171 | 3054×1450×1160 |
WGTS1245 | 5.5×2 | Mesh Size×2.5 | 20-50 | 2650 | 6583×1750×1720 |
Customizd Trommel Screen
Trommel screens can be configured for different applications based on material characteristics and processing methods:
For raw material pre-screening: Large-pore trommel screens are used for dry processing.
For removing floating debris from fine materials: Small-pore trommel screens are applied for wet processing.
