Application
The jig separator machine features a small footprint and easy operation. As a high-efficiency, energy-saving, and eco-friendly mineral processing equipment newly developed in recent years, it delivers excellent performance in the beneficiation of various metallic and non-metallic minerals—particularly fine-grained ones. It plays a very important role in the recovery and treatment of metal smelting slag and mine tailings, and also achieves good results in sorting irregular minerals.
Principle
The sawtooth wave jig machine is an energy-efficient gravity separation device developed and improved from traditional jig machine, based on the theoretical stratification law of the jig bed. Its jigging pulsation curve is sawtooth, resulting in faster rising water flow than the falling water flow. With short rising time and long falling time, it overcomes the drawbacks of sine-wave pulsation curve jigs—where rising and falling water flows and their acting times are equal—enhances bed looseness, reduces suction effects, enables full settlement of heavy ore particles, and significantly improves the equipment’s sorting capacity and recovery rate.
Feature
● Preminum material selection, strong wear resistance.
● Sensitive system operation, high reliability, low failure rate.
● Relatively stable performance, making it one of the ideal gravity beneficiation equipment.
● Under the same conditions, it serves more water than other types of jig machines, and is also applicable to remote water- scarce areas.
Structure

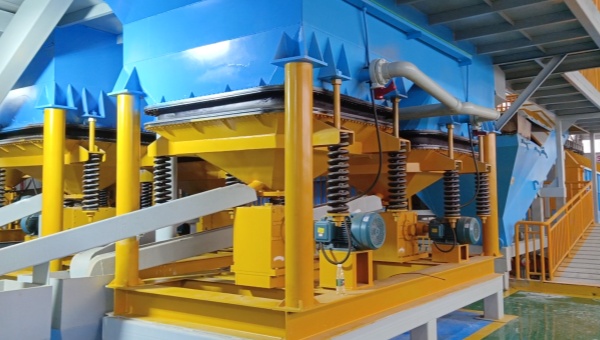

RUIJIE high-precision jig machine adopts a robust modular structure, integrating a feeding hopper, jigging chamber, screen assembly, and cam-driven vibration system on a heavy-duty frame. High-strength components like seamless tubes and durable springs ensure stable, long-lasting performance for continuous industrial operations.
Technical Parameter
Model | Jigging Chamber | Feed Particle Size （mm） | Supply Water Under Screen ( ) | Supply Water Pressure Under Screen (Mpa) | Processing Capacity (t/h) | Power (kw) | Dimensions (L*W*H) (mm) | Weight (kg) |
Shape | Area (㎡) |
JTY21 | Trapezia | 2.25 | ＜15 | 3~6 | ≥0.1 | 15~35 | 5.5 | 2230x1740x2600 | 2100 |
JTY42 | Trapezia | 4.5 | ＜15 | 30~50 | 5.5x2 | 4030x1980x2650 | 4200 |
Production Line

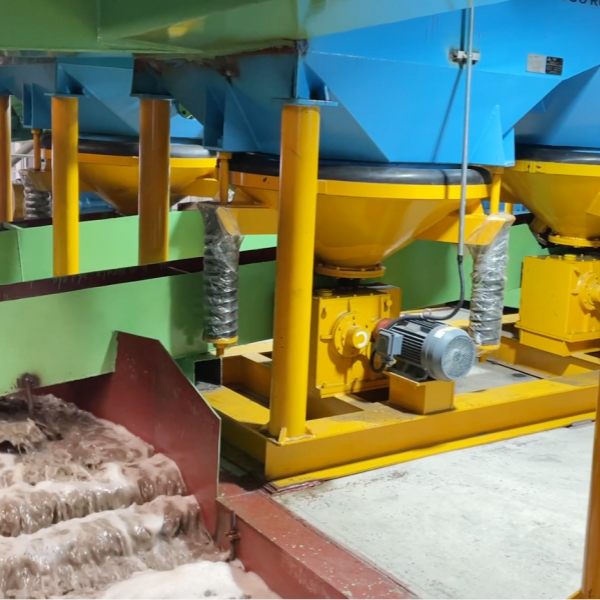

In our incineration bottom ash (IBA) wet sorting line, RUIJIE’s new industrial jig machine is a core component for metal recovery and classification. It leverages the principle of gravity difference to separate valuable metals like copper, silver, and gold from mixed materials, delivering efficient and precise separation for your recycling operations. It is also one of the most critical pieces of gold mining equipment, widely used for gravity-based gold recovery in mining operations.
