In industrial material processing, the electromagnetic overband separator (EOS) is a pivotal device for removing ferromagnetic materials. The article will help with a better understanding of this essential industrial iron removal equipment.
What is an electromagnetic overband separator?
An electromagnetic overband separator, often abbreviated as EOS, is a high-intensity magnetic separation device. It operates on the principle of electromagnetic induction, generating a powerful magnetic field through an electromagnet. When the electromagnet is energized, it creates a magnetic flux that attracts ferromagnetic materials such as iron, steel, and other magnetic alloys from conveyed material streams.
Application In Slag Production Lines
In slag or incineration bottom ash sorting production lines, the electromagnetic overband separator plays a crucial role. Slag, a by - product of metal smelting processes, often contains ferrous particles. These ferrous contaminants can damage crushers, conveyor belts, and other equipment in the production line. By installing an electromagnetic overband separator above the conveyor belt, the ferrous materials in the slag stream are attracted and removed. This not only protects the expensive processing equipment but also helps in recycling the ferrous components in the slag, increasing the economic value of the slag resource. For example, in steel slag processing, the separated ferrous materials can be further refined and reused in the steelmaking process.
Application In Other Industries
In the mining industry, electromagnetic overband separators are used to separate ferromagnetic minerals from non - magnetic ore materials. This improves the efficiency of mineral extraction and reduces the cost of further processing. In the food and pharmaceutical industries, where even tiny ferrous contaminants can pose significant risks to product quality and safety, these separators ensure that the final products are free from magnetic impurities. In the recycling industry, they are employed to separate ferrous metals from mixed waste streams, facilitating the recycling process and reducing environmental pollution.
Structure of the Electromagnetic Separator

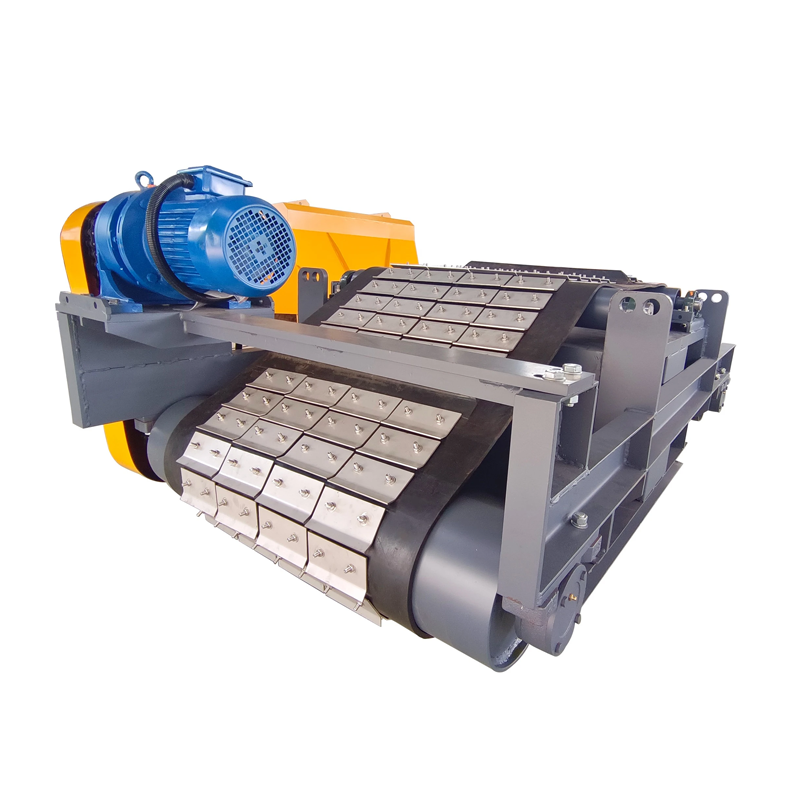

Ruijie electromagnetic overband separator's structure, featuring a magnetic system group, motor, driving roller, electric box, driven roller, track, and carrier roller, is designed for efficient ferromagnetic material separation. For example:
The magnetic system group, the core, generates a powerful and adjustable magnetic field with high - quality coils, suitable for different separation needs.
The motor, a high - torque and energy - efficient power source, runs continuously under heavy loads. Advanced controls regulate its speed and output.
The track, made of 2.5mm thick stainless steel 201 plate, bent to form a protective casing for the belt, ensuring excellent protection.
High-Intensity Magnetic Field: Electromagnetic overband separators can generate extremely strong magnetic fields, capable of attracting even weakly magnetic materials. This makes them highly effective in removing a wide range of ferromagnetic contaminants.
Adjustable Magnetic Field Strength: The ability to adjust the magnetic field strength is a significant advantage. Operators can fine - tune the magnetic force according to the type and size of the ferromagnetic materials to be separated, as well as the characteristics of the material stream.
Continuous Operation: These separators are designed for continuous operation, ensuring uninterrupted separation in high - volume production lines. They can work around the clock, enhancing the overall productivity of the industrial process.
Reliable and Durable: With a robust structure and high - quality components, electromagnetic overband separators have a long service life. The use of corrosion - resistant materials in their construction makes them suitable for harsh industrial environments.
Differences from Permanent Magnetic Separators
Magnetic Field Generation: The most fundamental difference lies in the way they generate magnetic fields. Electromagnetic overband separators rely on an electric current passing through the coil to create a magnetic field, while permanent magnetic separators use permanent magnets that produce a fixed magnetic field without the need for an external power source.
Conclusion
The electromagnetic separators is widely used in mining industry, recycling industry, food and pharmaceutical Industries, construction materials industry, ects. In conclusion, the electromagnetic overband separator is an indispensable piece of equipment in modern industrial production. Its unique combination of high - efficiency separation, adjustable performance, and wide - ranging applications makes it a key solution for industries seeking to improve product quality, protect equipment, and enhance overall productivity.
As industries continue to evolve and demand for more precise and efficient separation technologies grows, the electromagnetic overband separator is poised to play an even more significant role in the future of industrial material processing.
